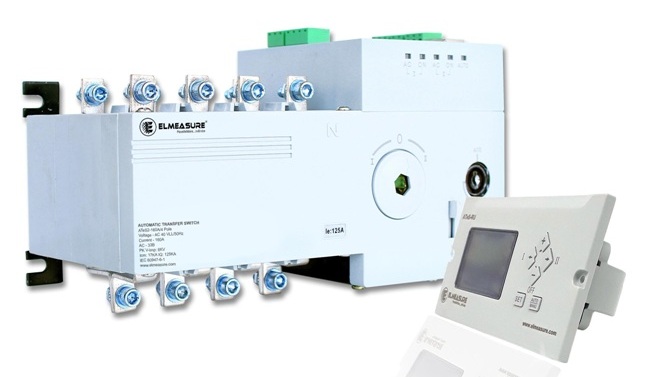

Elmeasure has launched ATeS (Automatic Transfer Equipment Switch) that is designed with automatic start/stop DG operation to ease the transfer between primary source to alternate source for providing uninterrupted power supply.
Elmeasure ATeS is a perfect dual power transfer switch ranging from 63A-630A, to ensure smooth and high-speed load transfer in the event of power outage or disturbances in the power supply. The ATeS is incorporated with fire alarm/external fault trip and plays a pivotal role in providing you with maximum immunity to the electrical system from fire risk/faults. Further, ATeS is systematized with time delays (timers) to prolong the stability of power source during automatic switching of sources in the case of blackout or loss of power. ATeS facilitates easy installation and ensures reliable performance.
Key features of the Elmeasure ATeS include: automatic start/stop operation of DG on mains failure; Inbuilt control switch for selecting auto/manual mode; high capacity to withstand short circuit; inbuilt source selection and a trip button for manual mode operation; 3-position isolation lock for Source I – Off – Source II; availability of overload tripping logic; fire alarm/external fault trip feature; AC 33B Utilization Category and in coherence with IEC 60947-6-1; optional RS485 communication and cloud connectivity for IoT applications; lower cost in comparison to the features provided.
ATeS device can be used for ATeS continuously monitors the utility power supply to sense any interruptions and transfers the load to the generator as the utility power fails. The load will be switched back as the utility power is restored. Also in remote locations, source powers can be transferred between two generator sets to provide uninterrupted power supply by installing ATeS. ATeS finds application mainly in commercial centres, manufacturing, airports and railways, automation process, medical facilities, oil and gas, banking & finance infrastructures.
For more details, visit www.elmeasure.com
