Dual powered protection relay from Siemens



Siemens is expanding its family of Reyrolle protection devices with the launch of the 7SR46.

Complementing an extensive portfolio of protection relays for distribution and industrial grids, the primary application for the Reyrolle 7SR46 is to provide overcurrent and earth fault protection in medium voltage distribution transformer stations. Mounted in a ring main unit, the protection device detects cable faults on the network and operates quickly to disconnect the fault.



The 7SR46 dual powered protection relay is to be showcased at Enlit Europe, taking place in Frankfurt from November 29 to December 1.



Power from CT

Due to their often remote location, secondary substations do not always have a battery to provide power to electronic equipment such as protection relays. With this in mind, the 7SR46 has been designed to operate using power from current transformers (CTs) when the line is live. Addressing scenarios whereby the line is switched off and there is already a fault on the line, or the earth connection has been mistakenly left connected, the 7SR46 has been specifically designed to power up quickly to provide protection in such circumstances.

Providing additional flexibility and security, the 7SR46 is dual powered to allow a connection to an auxiliary battery supply. With power available from the current transformers and an auxiliary power supply, this feature provides redundancy in case the battery fails.



Compact size

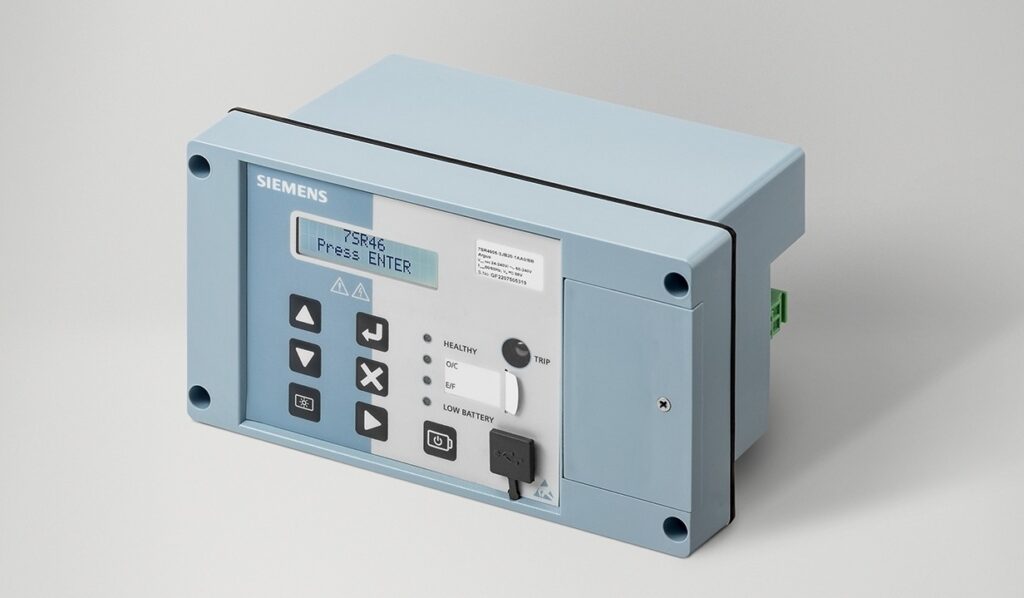

The 7SR46 device has a compact (H104 mm x W185 mm x D79 mm), moulded enclosure. The front of the device includes an easy-to-use display and push buttons that can be used to programme the relay and view fault records and instrumentation. Four LEDs provide information on the relay’s status and a mechanical trip flag is also available. The front of the device features a USB communication port for connecting to a PC and can power the relay when no other power source is available. The USB port also allows plug and play connection to Reydisp to programme the device and download fault and event information.

Also read: Siemens Launches Highly Customizable Generator Circuit-Breaker

Perfect for DT stations

Adhering to stringent product testing standards, the 7SR46 is perfectly suited for use in distribution transformer stations where there is not a circuit breaker trip supply. The device features a pulse output that can activate a low power trip coil to trip the circuit breaker. Available at a highly competitive price point, the 7SR46 provides comprehensive and reliable protection for medium voltage applications.
