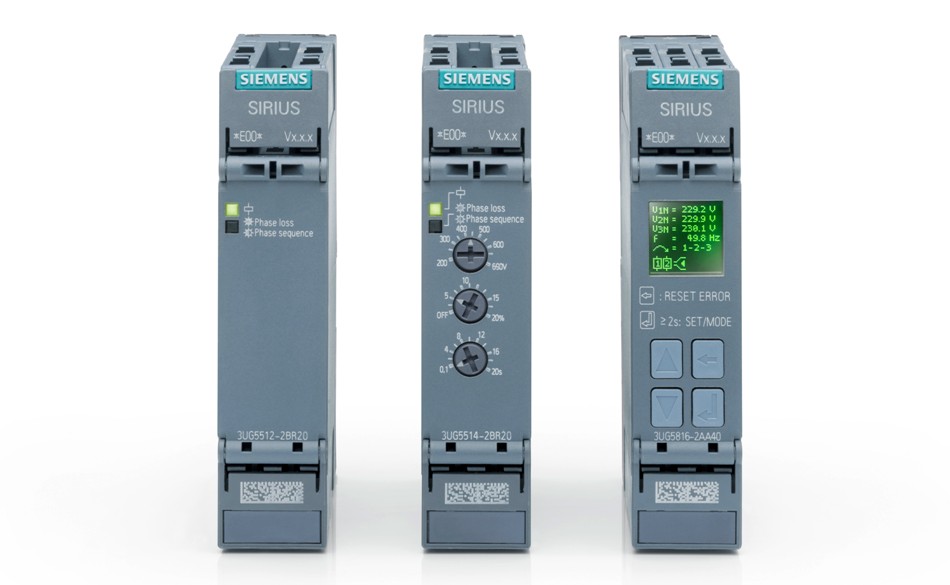

Siemens has launched a new generation of line monitoring relays. The SIRIUS 3UG5 line monitoring relays combine proven technology with new functions and applications.
The new SIRIUS 3UG5 line monitoring relays provide maximum protection for mobile machinery and equipment or in the event of unstable grids. This ensures that grid and voltage faults can be detected and reported at an early stage before major subsequent damage occurs.
Depending on the variant, the relays monitor phase sequence, phase failure with or without monitoring of the neutral wire, frequency, phase asymmetry as well as undervoltage or overvoltage. The 3UG5618 relay also offers automatic correction of the direction of rotation.
Relays are the easiest way to monitor standards-compliant grid stability and quality, ensuring proper system operation and a long service life of components such as motors or compressors. Grid monitoring relays are used in critical areas such as hospitals or the process industry, which require a high-quality, fail-safe supply of power. Other areas of application include cranes, elevators, air, and air-conditioning compressors, as well as the timber industry.
Compared to the industry standard, the new SIRIUS 3UG5 series can operate over a significantly wider frequency range – from 15Hz to 70Hz. For unstable grids, it is also possible to specify the frequency to be monitored.
The IO-Link open communication standard enables the transmission and evaluation of measured values and trends in the controller or in higher-level systems. IO-Link devices can be parameterized from a PC via the TIA portal. By saving the parameters, replaced devices are parameterized automatically.
The SIRIUS 3UG5 line monitoring relays have functional safety certification in accordance with the SIL 1 (IEC 62061) and PL c (EN ISO 13849-1) standards and are suitable for use in a wide range of applications. Demand continues to rise for safety-certified components and systems that meet high quality and reliability requirements, for example for rail applications and in power generation.
Thanks to an extended measurable voltage range up to a nominal line voltage of 690V and a reduced variance, the relays can also be used to monitor the operation of generators, for example in wind turbines. This simplifies order selection for global use and reduces inventory costs.
Also read: Siemens Consortium To Electrify Mumbai Metro Line 2B
A new housing with four operating buttons, a multicolor display and a teaching function allow for easy operation and parameterization without special prior training. The display, which can be powered off, provides energy savings of up to 20 per cent.
